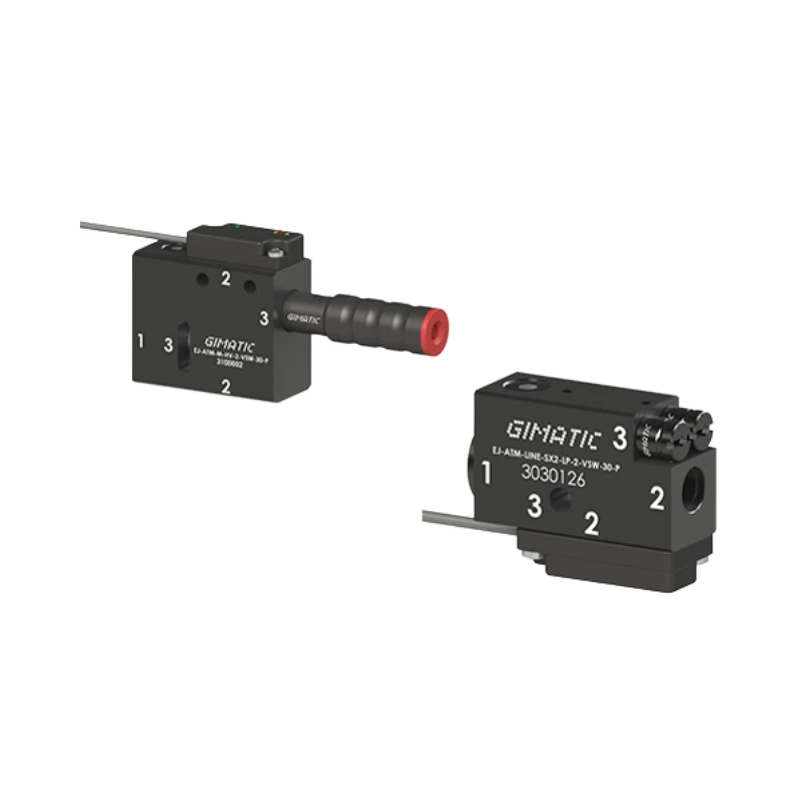

Vacuum pump with atmospheric quick release valve - EJ-ATM
Restores the atmospheric pressure inside the gripping device to enable the quick release of the product
Suitable for sealed applications to reduce cycle time
Available with Gimatic’s integrated vacuum switch, pre-set (-30, -50 and -70 kPa), in the PNP and NPN versions
Vacuum ports, in-line or L-shaped
A single 3/2 valve controls the vacuum pump and the ATM release device
Available with two EJ-SMALL cartridges (EJ-LP) and with one EJ-MEDIUM cartridge (EJ-HV)
Contact
Đã bán
0
EJ-Basic vacuum pump - EJ-BA
Ideal for decentralised applications
Low power consumption
Can be integrated near the gripping point, lightweight
G1/8", G1/4", G3/8" vacuum ports
Auxiliary vacuum port, for possible blow-off or monitoring of the G1/8" system
Available with two- and three-stage EJ-MEDIUM cartridge (EJ-LP, EJ-HF, EJ-HV)
Contact
Đã bán
0
Booster - EJ-BBT
Ideal for applications that require high suction flow rate with low vacuum levels
Anodised aluminium manifold
Available in 4 diameters (10, 20, 30 and 40 mm)
No obstruction of internal passages
Diameter 10 mm with G3/8" threaded vacuum port to enable direct connection with a suction cup or other gripping devices
Contact
Đã bán
0

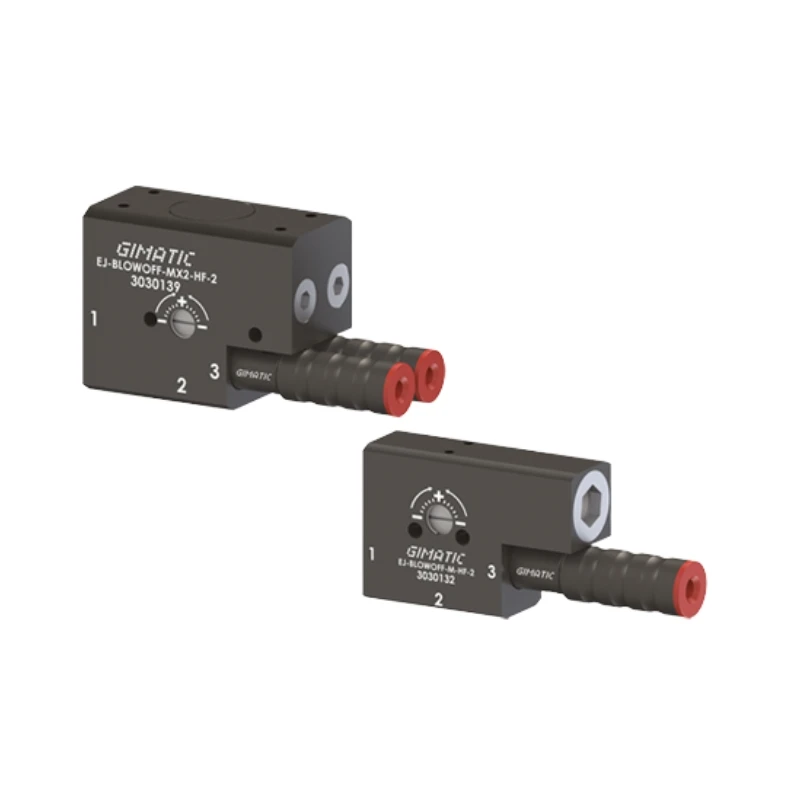

Vacuum pump with blow-off - EJ-BLOWOFF
Ideal for applications in dusty environments
Adjustable integrated blow-off for quick release and cleaning of the EJ cartridge
Available with Gimatic’s integrated vacuum switch, pre-set (-30, -50 and -70 kPa), in the PNP and NPN versions
No additional valves are required, as only one 3/2 valve controls both the vacuum pump and the blow-off function
Integrated silencer
Available with one or two EJ-MEDIUM cartridges (EJ-HF)
Contact
Đã bán
0

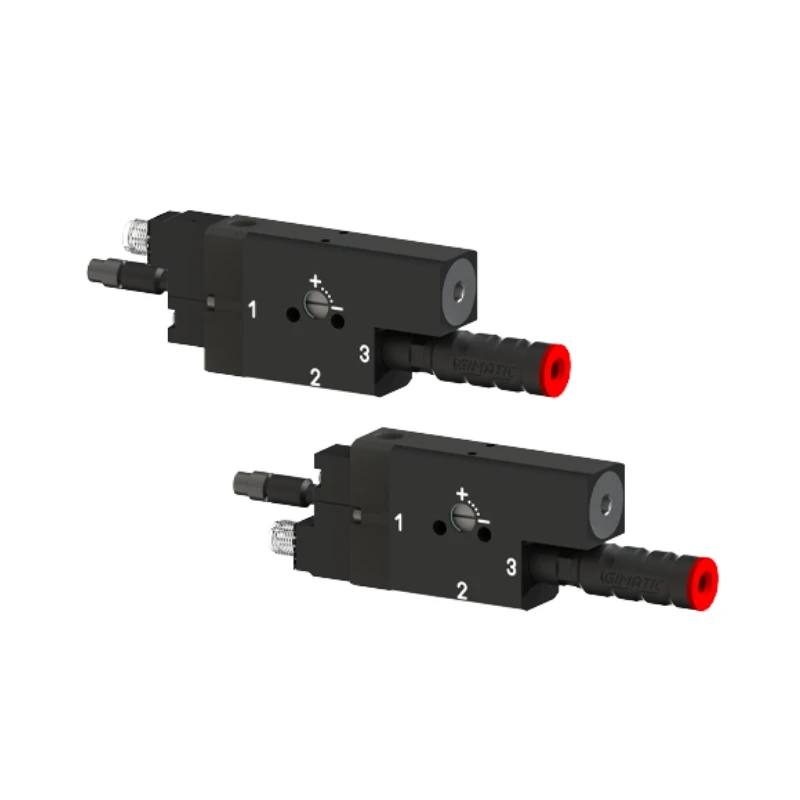

Vacuum pump with blow-off and solenoid valve - EJ-BSV
Ideal for applications in dusty environments
Adjustable blow-off for quick release and cleaning of the EJ cartridge
Tank capacity 10 cm³
Available with Gimatic’s integrated vacuum switch, pre-set (-30, -50 and -70 kPa), in the PNP and NPN versions
The 3/2 valve (NC, NO) feeds the vacuum pump and the blow-off function
Integrated silencer
Anodised aluminium manifold
Available with one two-stage EJ-MEDIUM cartridge (EJ-HF, EJ-HV), high suction flow rate and low energy consumption
Contact
Đã bán
0
ISO 15407-1 vacuum pump with blow-off and solenoid valve - EJ-BSVLG-L
Ideal for centralized and decentralized applications
Excellent ratio between suction flow rate and compressed air consumption
Available with ON/OFF vacuum valve, blow-off, and integrated manual override control
POM manifold prepared for mounting ISO 15407-1 (18 mm) valve of type 2x 3/2 NC or 5/3 with closed centre
Available with two- and three-stage EJ-LARGE cartridges (EJ-HF and EJ-HV)
Additional vacuum ports for mounting a vacuum switch
In-line design for greater dirt tolerance
Installable in series
Contact
Đã bán
0
ISO 15218 vacuum pump with blow-off and solenoid valve - EJ-BSVLG-M
Ideal for centralized and decentralized applications
Excellent ratio between suction flow rate and compressed air consumption
Available with ON/OFF vacuum valve, blow-off, and integrated manual override control
POM manifold prepared for mounting ISO 15218 (15 mm) valve of type 3/2, NO or NC, with 1.6 mm diameter opening
Available with two- and three-stage EJ-MEDIUM cartridges (EJ-LP, EJ-HF, EJ-HV)
Additional vacuum port for mounting a vacuum switch
Contact
Đã bán
0
Vacuum pump - EJ-CEN
Ideal for centralized applications
Modular and configurable from 5 to 16 two-stage EJ-LARGE cartridges (EJ-HF and EJ-HV)
Compact size and high suction flow rate
Sturdy design and low weight (aluminium body and PA12 silencer)
Possibility of working during suction or blowing (remove silencer)
Contact
Đã bán
0
Configurable, light and modular vacuum pump - EJ-CLS
Exceptional performance and capacity for high speed pick and places
Multiple connections for four different configurations: optional vacuum port and silencer either in line or T-shaped
Available with three-stage EJ-LARGE cartridge (EJ-HF and EJ-HV)
Analogue vacuum gauge and silencer included
Light (body in POM), sturdy threads (aluminium fittings)
G3/4" vacuum ports
Ideal for centralised applications
Pump body designed to ensure exceptional performance
Dimensions compatible with those of other pumps on the market
Easy maintenance: 4 screws that can be removed to access the ejectors
Contact
Đã bán
0
Cartridges, EJ-LARGE size - EJ-LARGE
Two- or three-stage cartridges with extremely compact dimensions
Can be integrated near the gripping point, lightweight
Available in the cartridge-only or cartridge with holder and integrated silencer versions
Contact
Đã bán
0
EJ-LINE vacuum pump - EJ-LINE
Can be integrated near the gripping point, lightweight
Clampable in-line design, to optimise overall dimensions
No reduction of suction flow rate
Flexible, enables the use of in-line or elbow fittings
G1/8" and G1/4" vacuum ports
Available with EJ-SMALL and EJ-MEDIUM cartridge (EJ-LP, EJ-HF, EJ-HV)
Contact
Đã bán
0
Cartridges, EJ-MEDIUM size - EJ-MEDIUM
Two- or three-stage cartridges with compact dimensions
Can be integrated near the gripping point, lightweight
Available in the cartridge-only or cartridge with holder and integrated silencer versions
Contact
Đã bán
0
Modular Light vacuum pump - EJ-MLG
Ideal for centralised applications
Low weight, POM body
G3/4" vacuum port
Integrated silencer
Prearranged with VACSW-A-AN203-G (PNP) and VACSW-A-AM203-G (NPN) vacuum switches
Available with two- and three-stage EJ-LARGE cartridges (EJ-HF and EJ-HV)
Contact
Đã bán
0

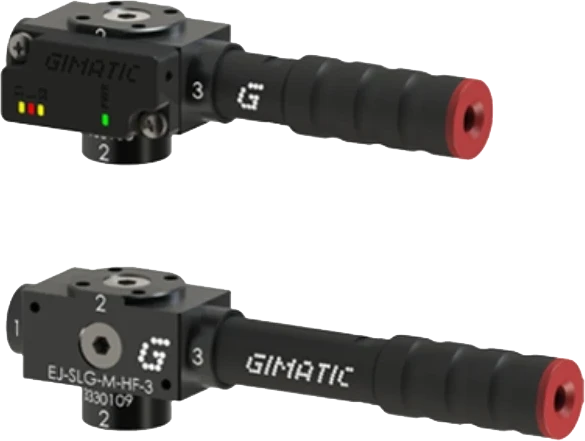

System Light vacuum pump - EJ-SLG
Ideal for decentralised applications
Easy installation and positioning thanks to several mounting options
Low weight for direct integration on robot or on EOAT
Available with two- and three-stage EJ-MEDIUM and EJ-LARGE cartridge (EJ-LP, EJ-HF, EJ-HV)
Prearranged with VACSW-A-AN203-G (PNP) and VACSW-A-AM203-G (NPN) vacuum switches
Contact
Đã bán
0
Cartridges, EJ-SMALL size - EJ-SMALL
Two-stage cartridges with extremely compact dimensions
Can be integrated near the gripping point, lightweight
Available in the cartridge-only or cartridge with holder versions
